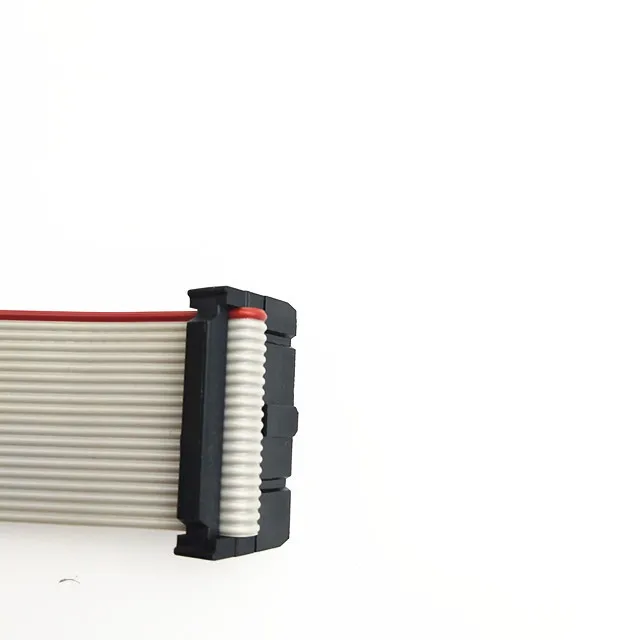

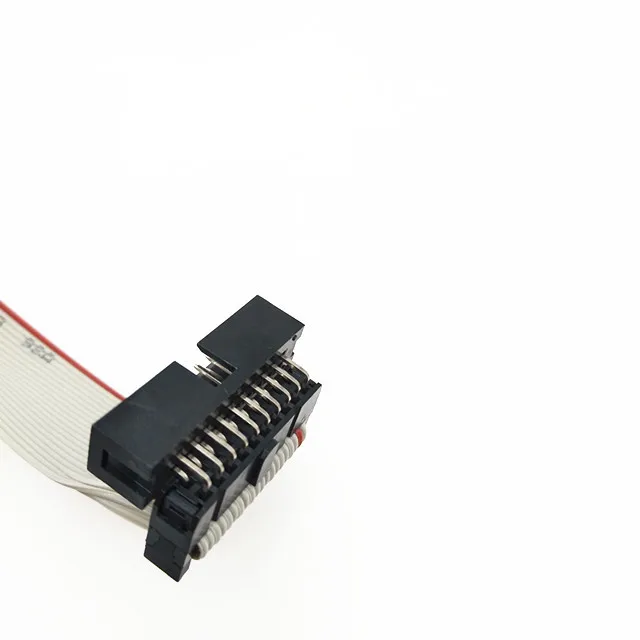

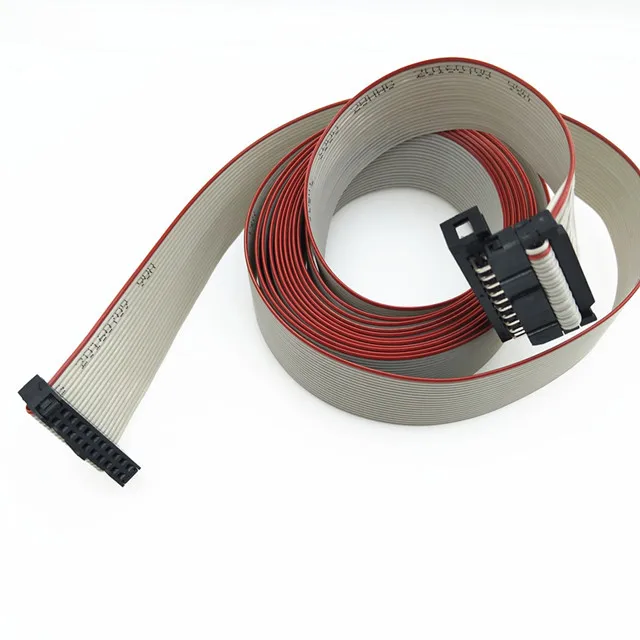

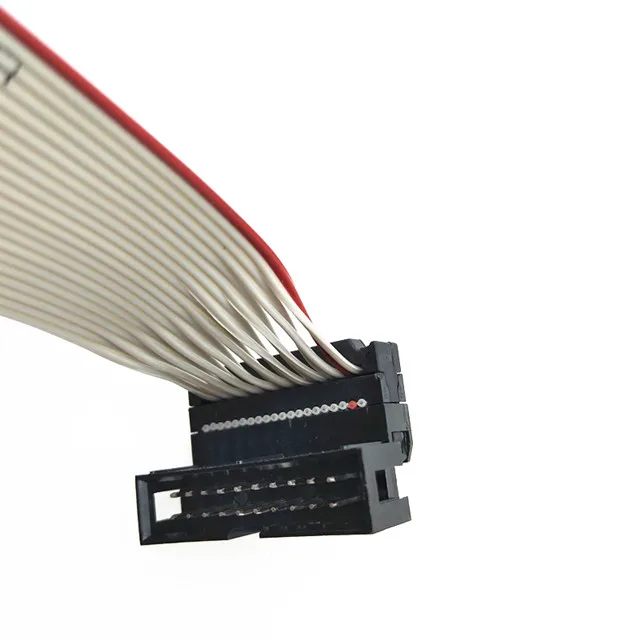

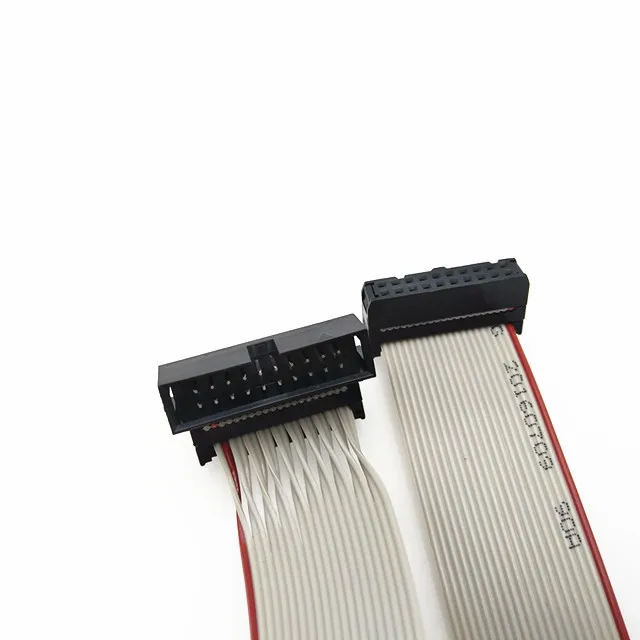

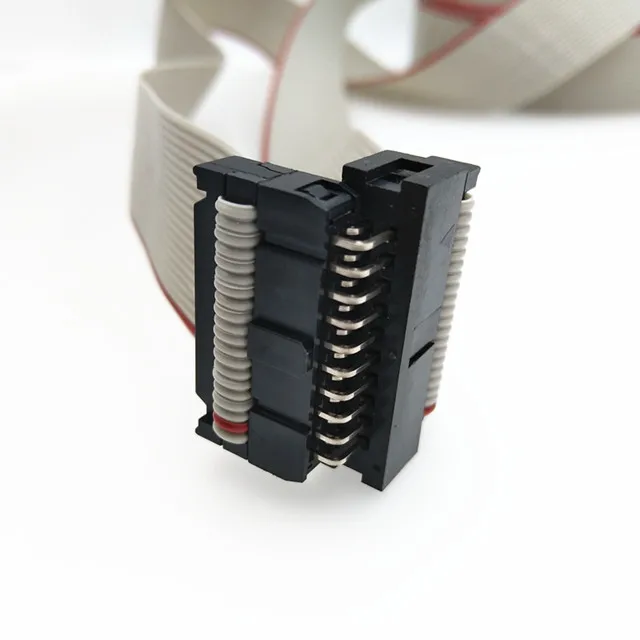

U L2651 20pin 2.54mm Pitch Male to Female IDC Connector Flexible Flat Ribbob Cable 300cm

FOB Reference Price:Get Latest Price
$1.88 - $9.98 / Pieces | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 2 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Samples - $1.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RCD
Model Number:
IDC Connector Assembly
Application:
Electronic
Gender:
male to female, male to male, female to female
Connector:
Gold-plated /nickel-plated
Rated Voltage:
300V/600V
Connector pitch range:
1.27mm, 2.0mm, 2.54mm or Customized
Cable Pitch Range:
0.8mm, 1.0mm, 1.27mm or Customized
Conductor range:
6~64P
IDC Type:
10cm, 15cm,30cm or cusomized
NAME:
pitch 2.54mm idc connector 20 pin ribbon cable
Service:
OEM/ODM
Certified:
RoHS,U L
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard export packing of ffc cable
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 2 To be negotiated
Product Description
UL2651 20pin 2.54mm Pitch Male to Female IDC Connector Flexible Flat Ribbob Cable 300cm:

FFC:





symbolItemSpecification
NNO.of Conductor4P TO 40P OR 80P-100P
LTotal Lengthl+/-5MM
AInsulation Length(L-8)+/-5
TPTotal PitchPitchx(N-1)PIN+/-0.08
WWidthPitch x NP+Pitch+/-0.08
PPitchPitch+/-0.03
MMargin1.25+/-0.05
TPCable Thickness0.121+/-0.05
T1Insert Thickness0.303+/-0.05
C1/C2Conductor Strip Length4.0+/-1.0
S1/S2Supporting Tape Length8.0+/-1.0
T2Conductor Thickness0.05+/-0.005
BConductor Width0.8+/-0.03
ESlanting<0.5
 Conductor MaterialTinned Copper
 Insulation MaterialFlame retardand polyester
 Supporting Tape MaterialPET
 Supporting Tape ColorBule
 Supporting Tape Spec0.225mm
